Ground Control Station

VIY Compact

All-in-one portable ground control station in a shock-resistant, moisture-proof case. Multi-band video reception and control with rapid 10-minute field deployment.

4 hrs Battery Life

10 min Setup Time

50 m Cable Length

Request Quote

Technical Specifications

Station Specifications

Analog Video Frequency 5.8 GHz / 1.2 GHz + external receiver

Control Frequency 2.4 GHz / 915 MHz / 400 MHz

Battery Life 4 hours

Setup Time 10 minutes

Communication Cable 50 m

Case Dimensions 345 x 295 x 150 mm

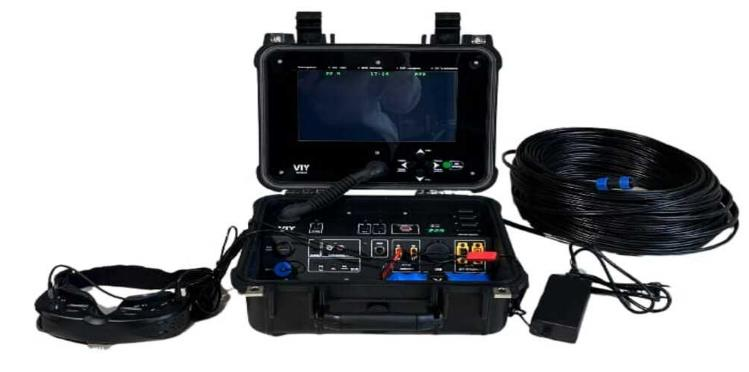

What's Included

Complete Field Kit

Control Case

Shock-resistant, moisture-proof case with 10.5-inch monitor, USB charging port, and remote control connection cable.

Video Receivers

Skyzone Steadyview X 5 GHz receiver and 1.2 GHz module. Supports additional receivers (Thor35, Thor67 and others).

TX Modules

RadioMaster Nomad Dual (900 MHz, 2.4 GHz) and BetaFPV ELRS Micro TX 400 MHz in a housing with external power supply.

Interfaces

2 RCA connectors, 3.5 mm jack output & input, HDMI input. Video capture card and memory card included.

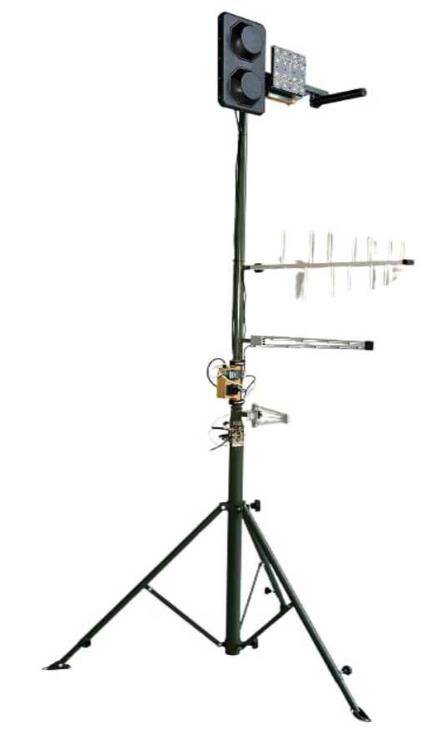

Video Antennas

1.2 GHz patch (Maple 12dBi), 5.8 GHz patch (Scream Industries 19.5dBi), 5.8 GHz helix antenna.

Control Antennas

Full spectrum coverage: 650-1200 MHz, 360-650 MHz, 2100-2700 MHz. Battery & 220V mains power supply via adapter.
